Video Telematics
TecYug's Video Telematics delivers intelligent AI-powered vehicle safety solutions designed to enhance driver awareness, improve fleet security, and reduce road risks. Featuring advanced Driver Monitoring Systems (DMS), Advanced Driver Assistance Systems (ADAS), and real-time video analytics, TecYug helps you drive smarter, safer, and with complete confidence.

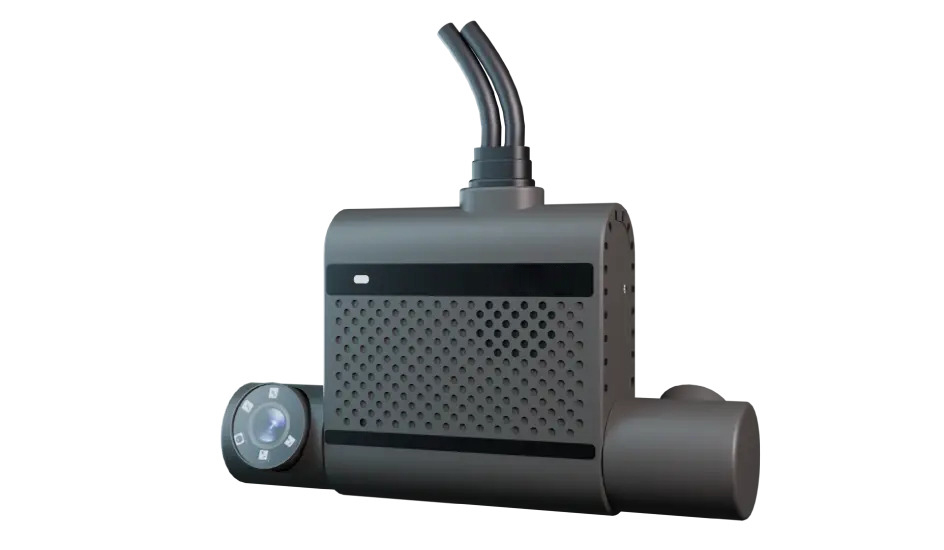

AVD-201
AVD-201 is a high-performance 3-channel HD in-vehicle camera system designed to deliver complete video, audio, and location intelligence for modern fleet operations. Equipped with integrated GNSS positioning, Wi-Fi, 4G connectivity, and a built-in microphone, it provides real-time vehicle monitoring, live video streaming, and reliable evidence recording. Ideal for fleet management, public transportation, logistics, ride-hailing services, commercial vehicles, and other safety-critical mobility applications, the AVD-201 enhances driver accountability, improves operational visibility, and supports proactive safety management.

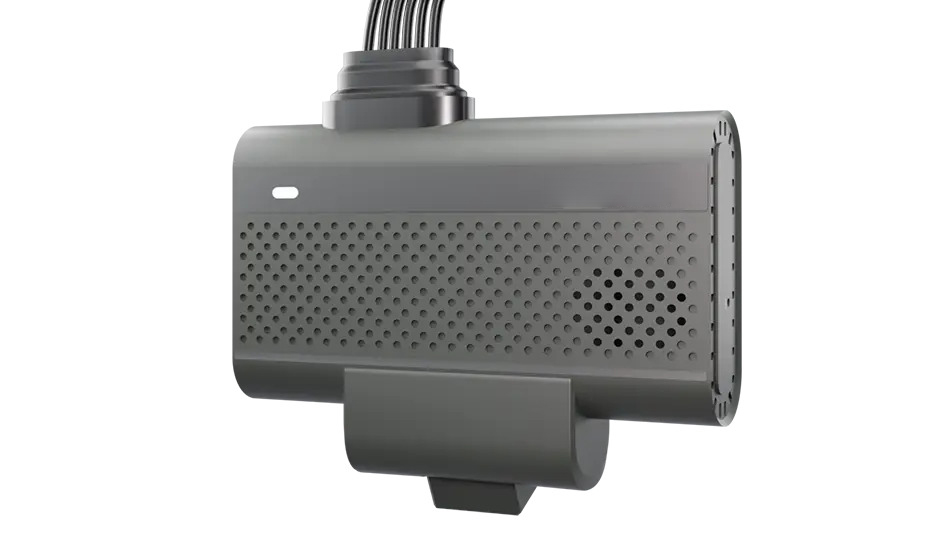

AVD-100
TecYug's AVD-100 is a powerful road video monitoring solution designed to enhance vehicle safety, operational efficiency, and fleet visibility. With real-time video capture and intelligent monitoring capabilities, it helps improve driver behavior, supports traffic management, and provides reliable incident recording for faster investigations. Ideal for fleet operators, commercial vehicles, and public transportation, the AVD-100 delivers enhanced security, accountability, and peace of mind on every journey. Ideal for fleet management, public transportation, logistics, ride-hailing services, commercial vehicles, and other safety-critical mobility applications, the AVD-201 enhances driver accountability, improves operational visibility, and supports proactive safety management.
WiFi Support
Seamless Wi-Fi connectivity enables real-time data access, remote monitoring, and effortless device control.
Built-in High Sensitivity Microphone
Equipped with a high-sensitivity built-in microphone, the system captures clear and reliable audio even in challenging environments.
Built-in Single Chip Design
**Powered by an integrated single-chip architecture, the system delivers efficient processing, reliable performance, and a compact design.**
Product Specifications
Interface
| RS232 | 1 RS232 port(DEBUG function) |
| RS485 | 1 RS485 port |
| AV Input | 3CH MIN DIN 4P, Built-in high sensitivity microphone |
| Audio Output | 1CH MIN DIN 4P；Built-in 1.5W speaker |
| Alarm Input | 4 digital inputs |
| Alarm Output | 1CH output (Outputs can directly drive relays <150mA) |
| SD Card | 2 High speed SD card port |
| USB Interface | 1 MICRO USB port |
| Ignition Input | 1CH ACC signal |
| Indicators | PWR/RUN Bicolor indicator |
| SIM | 1 MICRO SIM port |
Item
| Operating System | Embedded Linux OS |
| Operating Language | English |
| Operating Interface | GUI, Support mouse |
| Password Security | User Password Management |
Audio & Video
| Video Standard | PAL/NTSC |
| Compression Standard | H.265/H.264 |
| Image Resolution | 720P /960H/D1/CIF (ADAS support 1080p) |
| Playback Quality | 720P /960H/D1/CIF |
| Decoding Ability | 4CH 720P real time |
| Recording Quality | Class 1-6 optional |
| Audio Compression | G.711A, G.711U, G.726 |
| Audio Recording Method | Audio & Video synchronized recording |
Recording & Playback
| Video Method | Automatic/Alarm |
| Audio bit rate | 8Kb/s |
| Video search | Searchable by channel, type of recording |
Software
| Upgrading mode | Manual/ Automatic/ Remote |
| Upgrading method | USB disk, SD card, Wireless network |
Power
| Power Input | 9-36V DC |
| Storage | 1080P 600MB/Hour/CH H.265, 1080P 1200MB/Hour/CH H.264 |
Operating Environment
| Typical power consumption | Less than 10W |
| Working temperature | -20 °C to +70 °C |
Physical Specification
| Dimension | 125.6 * 86.6 * 46.9 mm |
